SMAH150-E Heavy Duty Slurry Pump

SMAH150-E Heavy Duty Slurry Pump

    Payment Type: L/C,T/T
    Terms of Trade: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Brand: Soarho
    Transportation: Ocean
    Place of Origin: Shijizhuang
    Supply Ability: 20/month
    Port: Tianjin in China

Basic Info

Model No.: SMAH150-E

Product Description

SMAH150-E Heavy Duty Slurry Pump

Product Profile

The rugged SMAH150-E heavy duty slurry pump is the most classic slurry pump we produce, which is proving their reliability and efficiency widely in: minerals processing, coal preparation, chemical processing, effluent handling, sand and gravel and other slurry handling situation. It has high interchangeability with Warman 8/6E-AH pump, which can withstand the extreme wear from coarse, heavy solids and flow turbulence, performing under even the most aggressive workloads. This one type of tailing thickener slurry pumps is built from high chrome white iron hard metal casting and it is ideal for transporting large particle slurries. The strength of our AH(R) series mine tailing slurry pump lies in the superiority of our advanced hydraulic designs and our high performing wear and corrosion resistant materials.

Performance parameter:

Flow: Q=360~828 m3/h

Head: H=10-61 m

Speed: n=500-1140 r/min

Weight: 1473 kg

Allowable Mating Maximum Power: 120 KW

Model Meaning:

For example: SMAH(R)25-B (AH: Metal Horizontal Centrifugal Slurry Pump; AHR: Rubber Horizontal Centrifugal Slurry Pump;25: Discharge Diameter(mm) ;B: Frame Type.)

Product Feature

1. High capacity bearing design.

2. Optional special materials available on request: Abrasion resistant high chromium alloy A05, Abrasion resistant high chromium alloy A49, Natural rubber.

3. Various shaft seal options including gland seal, expeller drive seal and mechanical seal.

4. The modular design ensures easy interchangeability of all metal and rubber parts.

5. The discharge position by request may be rotated 8 different angles at intervals of 45 degrees.

6. Application at best efficiency point and selection of wear-resistant material give long life.

Construction Description

AH Pump Construction Description-2

Packing Sealing Structure (Stand Structure)

1 Suction Seal 2 Cover Plate 3 Front Liner 4 Liner 5 Discharge Seal 6 Stuffing Box 7 Packing Gland 8 Bearing Assembly 9 Shaft Sleeve 10 Packing 11 Front Lantern Ring 12 Rear Liner 13 Impeller 14 Frame plate

Competitive Advantage

1. Has many successful projects.

2. Factory price, top quality.

3. Have an excellent development, production and service team.

4. Skilled team to provide you specialized technical support.

5. Your business relationship with us will be confidential to any third party.

Other shaft sealing structures

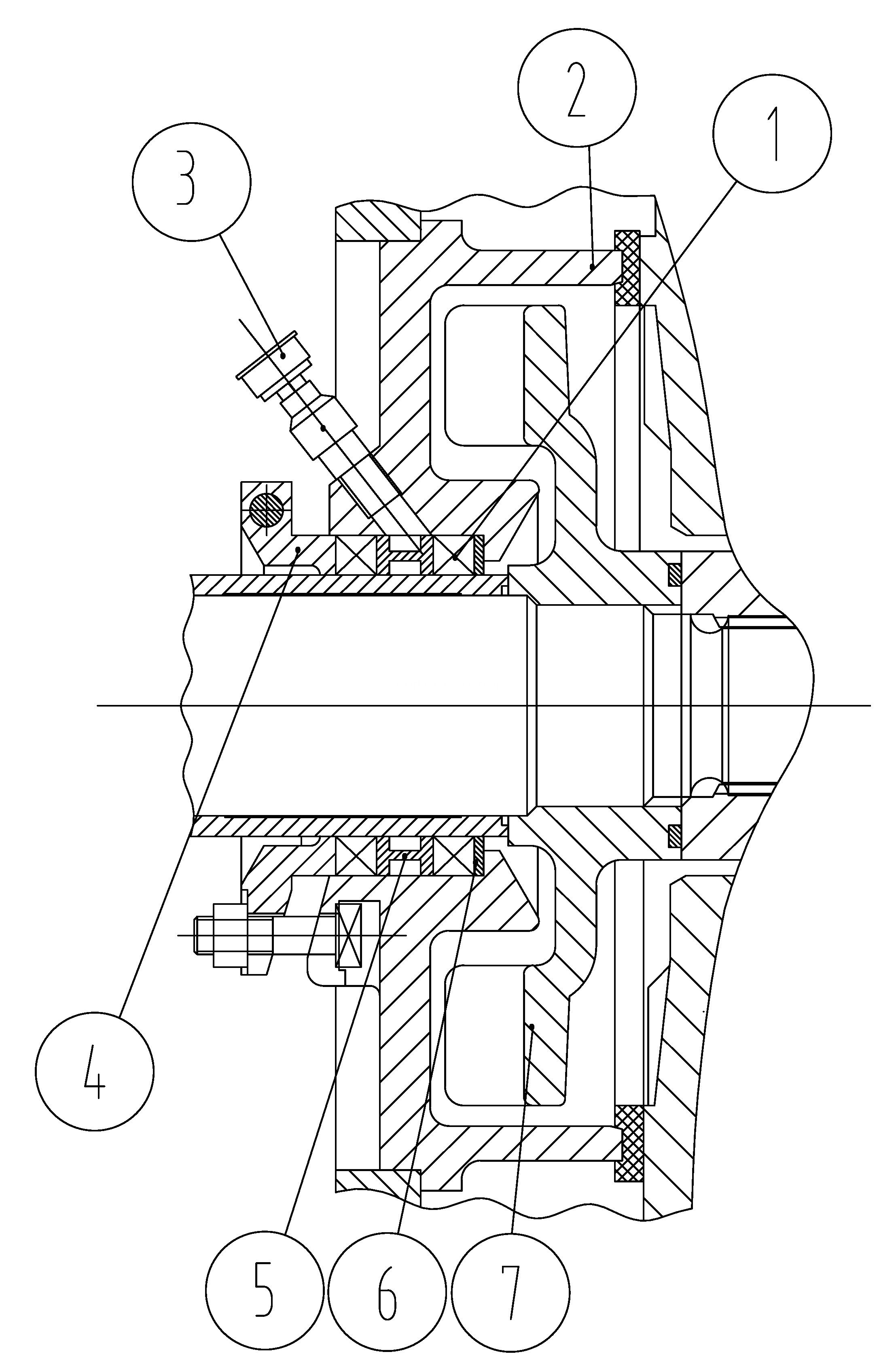

(1) Expeller Seal Structrue

Expeller seal construction

1 Packing

2 Metal Release Gland

3 Oil cup

4 Packing Gland

5 Lantern Ring

6 Packing Gasket

7 Expeller

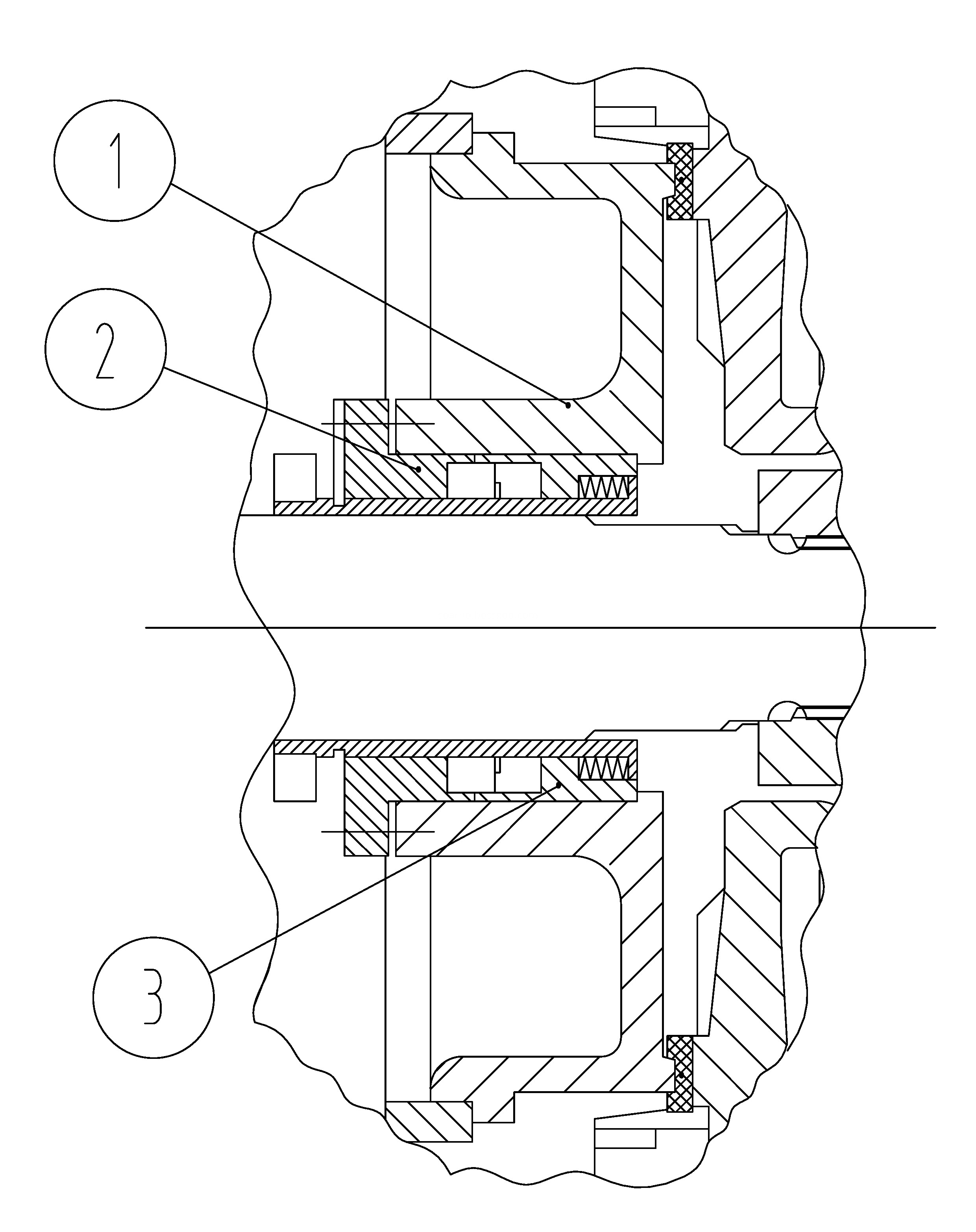

(2) Mechanical Seal Structure

Mechanical Seal Structure

1 Mechanical Seal Box

2 Stationary Ring Assembly

3 Movable Ring Assembly

Variable Speed Centrifugal Slurry Pump Curves

SMAH150-E(R) performance curves

Drive type

DCZ Drive Type CV drive type

DCz Drive CV Drive

CRZ drive type ZV drive type

CRz Drive ZVz Drive

Outline Drawing

SMAH(R)150-E outline drawing
